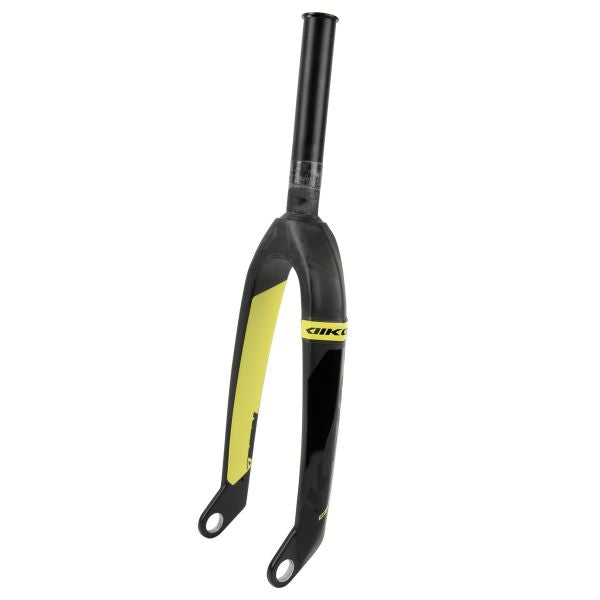

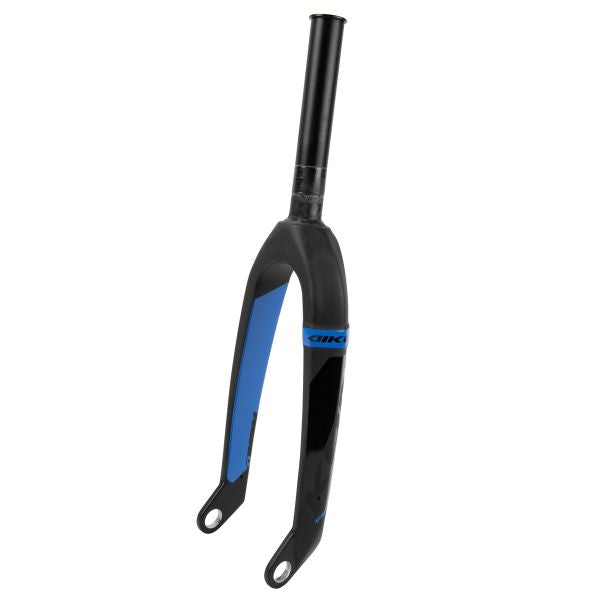

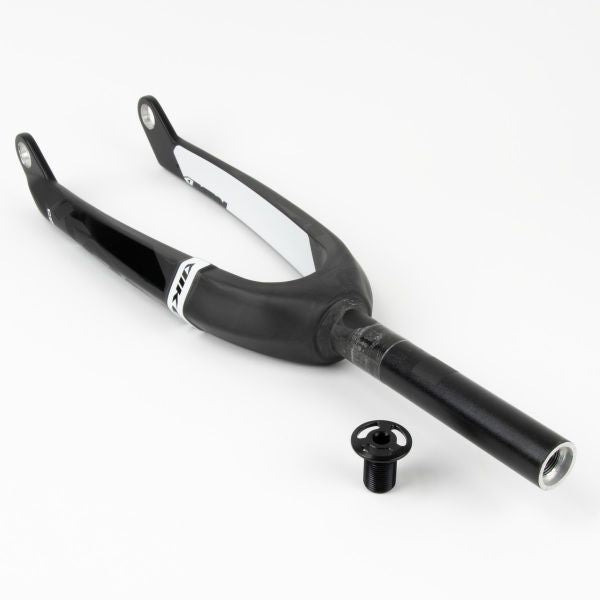

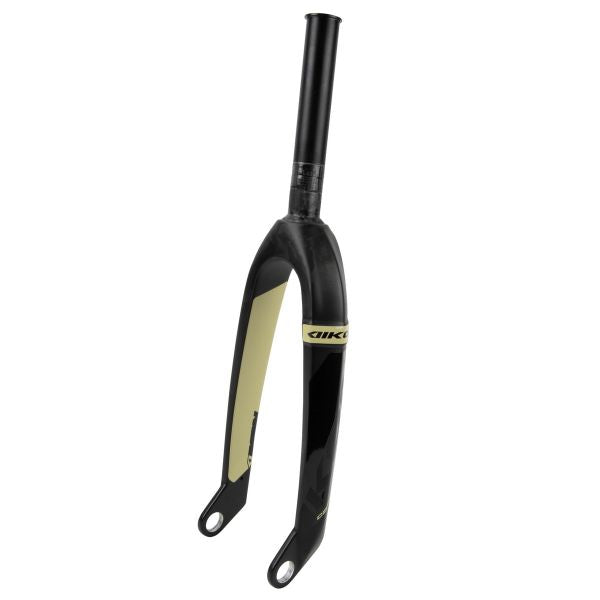

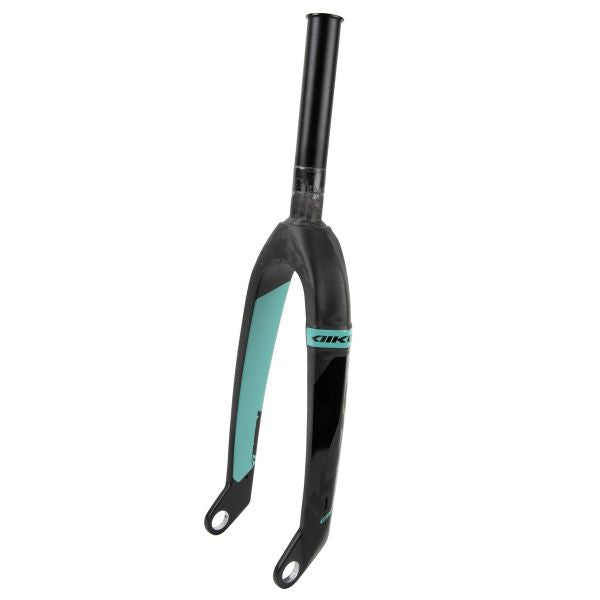

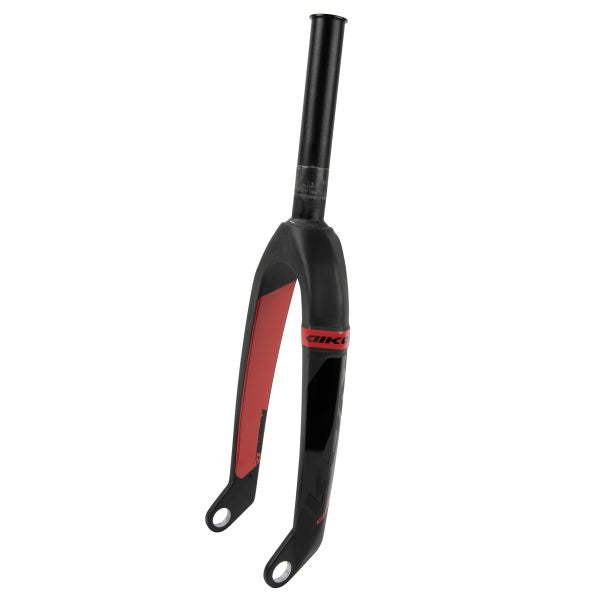

IKON now has a 1-1/8th full sterrtube Pro Size fork for 24” frames with 1 1/8t head tubes. The IKON Pro 1 1/8th has the same look and design as our tapered fork option, with an Alloy the 1-1/8th steer tube. The fork uses a 20mm dropout.
SPECIFICATIONS :
Material: Toray UD Carbon fiber Matte Natural Hand Laid Carbon Finish
Integrated fork race built in for 45degree bottom bearing - No additional fork race needed
Steer tube length : 172mm
Dropouts: CNC Machined 6061-T6 Aluminium
Dropout Axle : 20mm Thru (112mm length suggested) - Optional 20mm to 10mm / 3/8 adapters available
Axle to crown: 353.5mm - 24”
Offset: 31mm
Weight: 24" Fork 20.3 OZ / 574 Grams, or 1.2 LBS (without top cap)
IKON forks are like no other Carbon fork offered today. Due to the hand laid natural Toray UD CARBON, the IKON fork has a unique look to it, unlike some types of traditional carbon fiber. The IKON Carbon is laid in a direction for optimal strength so there is non uniform carbon pattern and finish that will differ from fork to fork with its Matte finish.
For use with a 20mm Axle - Suggested Lenght 114, not included. Excess Front Axle - EXHUPAXFBKBK
Optional 20mm to 10mm / 3/8 adapters available - IKFKADDOBKBK
